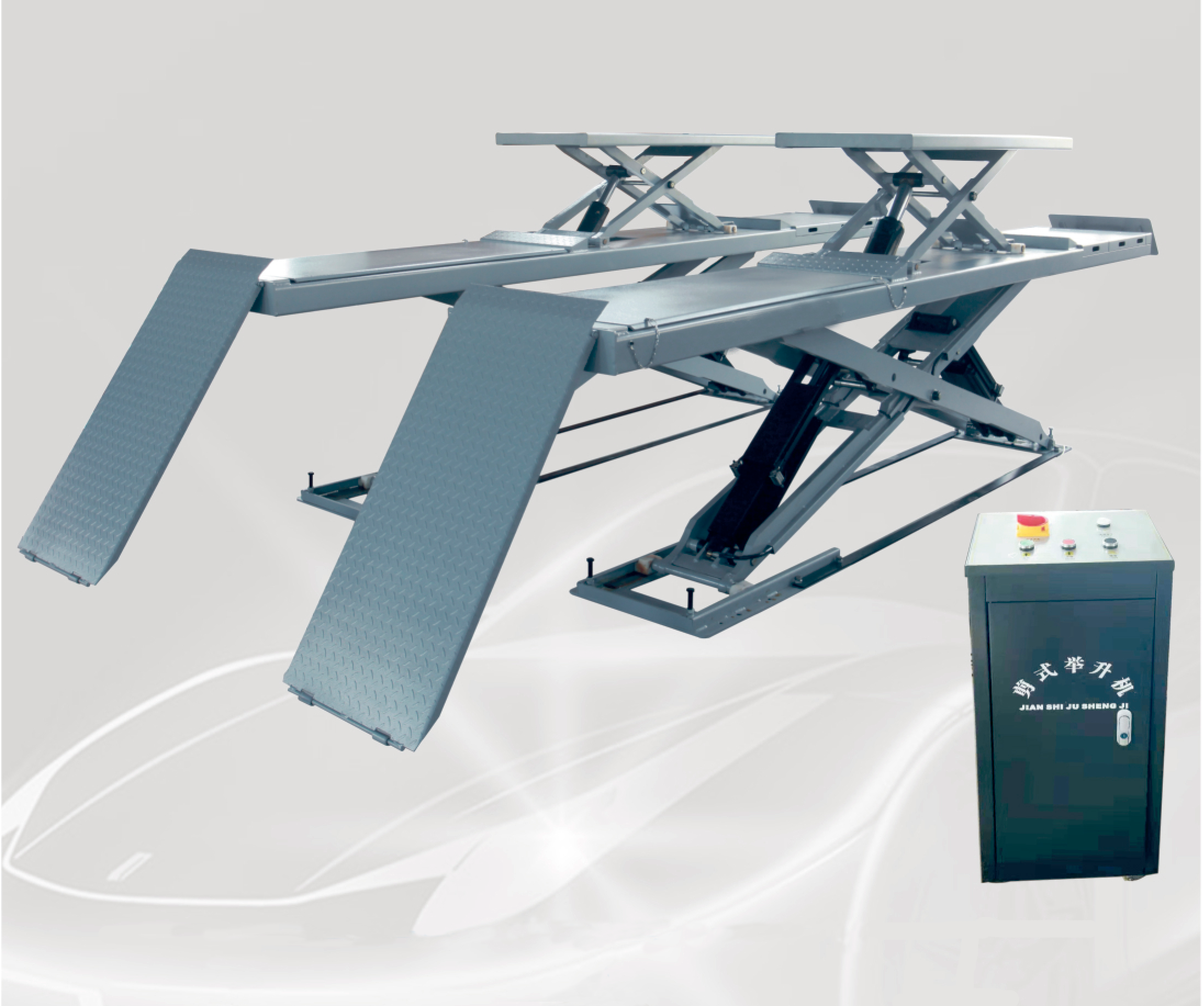

Super low profile and perfect for ground mounted; Suitable for any alignment turntable. The main hydraulic components of the machine are assembled by international high quality imported parts, which is double-tooth, hydraulic and electrical triple protection, safe, reliable and stable running. This machine is composed of three parts:main body plate,hydraulic system and electrical system.
Lifting capacity | 4000KG |
Lifting height | 1800mm |
Lifting time | ≤75s-20s |
Platform length | 4500mm |
Platform Width | 660mm |
Motor power | 3KW |
Floor height | 180mm |
Air supply pressure | 6-8KG/cm |
Weight | 2380KG |
6245Z-Ultra-Thin-datasheet(cick to download) 2020-12-16
